Secure your critical hardware with the Omnergy BR1632 3V Lithium Carbon Monofluoride battery. Delivers a robust 120mAh capacity, extreme -40°C to +85°C thermal stability, and <2% self-discharge. Engineered for servers, POS, and security systems.

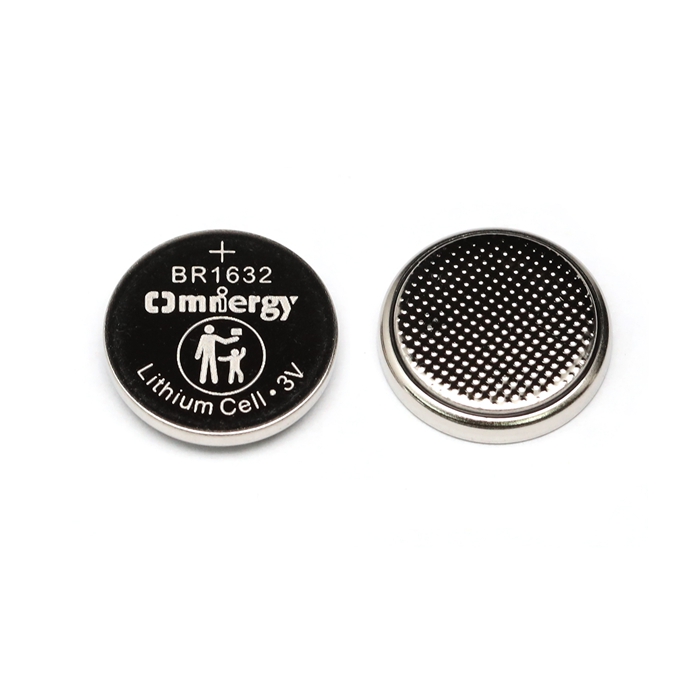

Uncompromising Thermal Stability: The Premium BR1632 3V Lithium Carbon Monofluoride Battery (120mAh)
When operating in environments where heat destroys standard batteries and cold paralyzes power output, enterprise hardware requires a specialized solution. The BR1632 3V Primary Lithium Poly-carbon Monofluoride (Li-CFx) Battery is engineered specifically for uncompromising reliability.
Measuring a compact 16.0mm × 3.2mm, this advanced coin cell delivers a substantial 120mAh capacity. It is the definitive memory-backup and real-time clock (RTC) power source for hardware architects designing servers, advanced security grids, and financial terminals that demand zero downtime.
Technical Specifications Data Sheet of BR1632 3V Lithium Carbon Monofluoride Battery 120mAh
| Specification Parameter | Technical Detail |
| Battery Model | BR1632 |
| Chemistry | Primary Lithium Poly-carbon Monofluoride (Li-CFx) |
| Nominal Voltage | 3.0V |
| Nominal Capacity | 120mAh |
| Operating Temperature Range | -40°C to +85°C |
| Dimensions (Diameter x Height) | 16.0mm × 3.2mm |
| Annual Self-Discharge Rate | < 2% (at 20°C room temperature) |
| Rechargeable | No (Primary Cell) |
Full BR Series Lithium Carbon Monofluoride Batteries
| Model | Nominal Voltage（V） | Nominal Current (mA) | Nominal Capacity (mAh) | Maximum Continuous Current (mA) | Maximum Pluse Current (mA) | Max Dimension (mm) | Working temperature（℃） | Weight（g） |
| BR1225 | 3 | 0.1 | 45 | 1 | 3 | φ12.5×2.5 | -40~+85 | 0.8 |
| BR1632 | 3 | 0.2 | 120 | 2 | 5 | φ16.0×3.2 | -40~+85 | 1.8 |
| BR2016 | 3 | 0.1 | 70 | 2 | 5 | φ20.0×1.6 | -40~+85 | 1.8 |
| BR2025 | 3 | 0.2 | 130 | 3 | 6 | φ20.0×2.5 | -40~+85 | 2.5 |
| BR2032 | 3 | 0.2 | 200 | 3 | 6 | φ20.0×3.2 | -40~+85 | 3 |
| BR2325 | 3 | 0.2 | 170 | 4 | 10 | φ23.0×2.5 | -40~+85 | 3.2 |
| BR2330 | 3 | 0.2 | 240 | 4 | 10 | φ23.0×3.0 | -40~+85 | 3.5 |
| BR2335 | 3 | 0.2 | 280 | 4 | 10 | φ23.0×3.5 | -40~+85 | 4.3 |
| BR2354 | 3 | 0.4 | 420 | 4 | 10 | φ23.0×5.4 | -40~+85 | 6 |
| BR2430 | 3 | 0.2 | 230 | 5 | 15 | φ24.5×3.0 | -40~+85 | 4.2 |
| BR2450 | 3 | 0.4 | 550 | 5 | 15 | φ24.5×5.0 | -40~+85 | 6 |
| BR2477 | 3 | 0.6 | 1000 | 5 | 15 | φ24.5×7.7 | -40~+85 | 9.6 |
| BR3032 | 3 | 0.4 | 500 | 8 | 20 | φ30.0×3.2 | -40~+85 | 5.5 |
The Li-CFx Advantage: Engineered to Outperform
Standard CR (Manganese Dioxide) batteries are excellent for everyday consumer goods, but industrial and enterprise applications require the specialized chemistry of the BR series.
Extreme Thermal Endurance (-40°C to +85°C)
From the sustained, baking heat of dense enterprise server chassis to the freezing conditions of outdoor security nodes, the BR1632 remains incredibly stable. It operates flawlessly across a punishing temperature envelope of -40°C to +85°C, preventing the leakage and rapid capacity degradation that plagues standard cells under thermal stress.
Sustained High Capacity (120mAh)
While maintaining a slim 3.2mm profile, this battery houses a robust 120mAh of power. Combined with an incredibly flat discharge curve, it ensures that your device’s critical memory and RTC functions receive a steady, continuous 3.0V supply until the very end of its lifecycle.
Decades-Ready Standby (<2% Annual Self-Discharge)
Enterprise backup components spend most of their lives waiting. Utilizing high-purity internal components and superior sealing technology, the BR1632 boasts an annual self-discharge rate of less than 2%. Even after a decade in a server rack, it stands ready to preserve critical data the moment primary power is lost.
Core Application Ecosystems
The unparalleled thermal and chemical stability of the BR1632 makes it the premier choice for mission-critical electronic infrastructure:
Enterprise Servers & Data Centers: The ultimate CMOS/RTC backup battery. Designed to withstand the continuous, high-ambient heat of server motherboards and dense blade enclosures without premature failure.
Advanced Security & Surveillance: Powering outdoor cameras, biometric access control panels, and perimeter alarm systems exposed to harsh seasonal weather fluctuations.
Point of Sale (POS) Terminals: Providing reliable, long-term power to preserve cryptographic keys and transaction logs in commercial retail environments.
Industrial IoT & Telematics: Serving as the resilient heartbeat for factory sensors, fleet tracking devices, and automated utility meters.

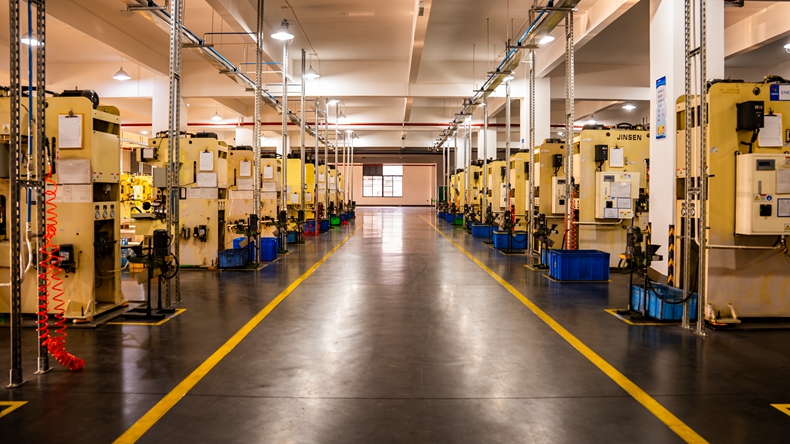

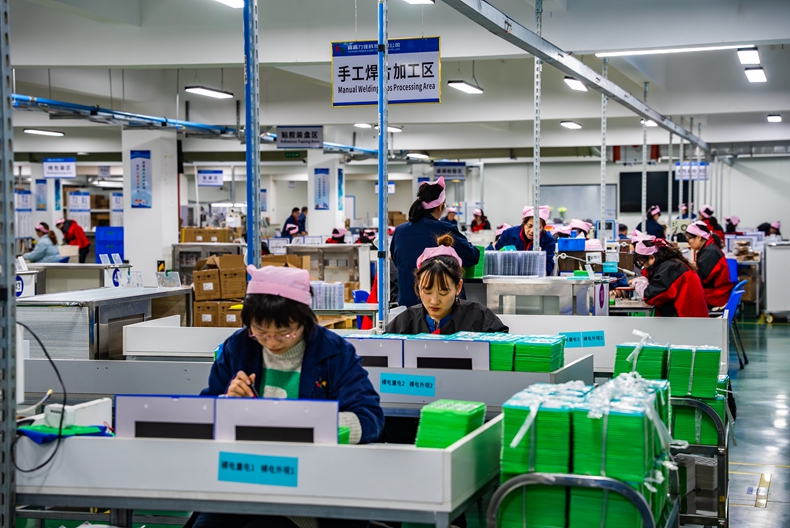

The Omnergy Guarantee: Manufacturing Excellence
When you specify a power source for enterprise hardware, the manufacturer matters. This BR1632 is proudly manufactured by Omnergy, a brand synonymous with world-class power solutions.
As a recognized national-level "Specialized, Refined, and New 'Little Giant'" enterprise and a publicly listed high-tech manufacturer (Stock Code:920237), Omnergy ensures every battery is produced under stringent, globally recognized quality control standards. When you choose Omnergy, you are choosing certified, industrial-grade reliability.
Expert FAQ: Sourcing the BR1632
Q: What is the primary difference between a BR1632 and a CR1632? A: While both are 3V coin cells with identical physical dimensions (16.0mm x 3.2mm), their chemistry is completely different. A CR1632 uses Lithium Manganese Dioxide, ideal for standard temperatures. The BR1632 uses Lithium Poly-carbon Monofluoride (Li-CFx), which allows it to withstand significantly higher operational temperatures (up to 85°C) and provides a much flatter voltage discharge curve over a longer lifespan.
Q: Why is the BR1632 explicitly recommended for server motherboards? A: Servers generate immense, localized heat. Standard CR batteries begin to suffer from accelerated self-discharge and risk chemical leakage when consistently exposed to temperatures above 60°C. The BR1632 is structurally stable up to 85°C, ensuring a secure 10+ year backup lifespan inside demanding server environments.
Q: Can this battery be customized with solder tabs for automated PCB mounting? A: Yes. We specialize in B2B electronic component integration. We offer the BR1632 with a variety of custom spot-welded configurations, including horizontal tabs, vertical pins, and custom wire leads tailored for wave soldering and automated SMT assembly lines.
Future-Proof Your Hardware's Reliability
Do not risk your device's reputation on inferior power sources. Equip your servers and security networks with the thermal endurance of the Omnergy BR1632.
